THEY LAUGHED WHEN I SAID I WILL MEASURE TORQUE — BUT WHEN I STARTED TO MEASURE!

Torque measurement is a very common application, used to measure engine power output on propshafts and driveshafts, driver input through steering wheels, tightening bolts, or anywhere a component is subjected to a twisting force. The most common ways to do this are:

Single full bridge, 250US.

Our 250US gauge is often referred to as the “windmill” pattern. Designed for a one-step installation on large shafts or where access is restricted, it can be installed in minutes, requires only 5 solder connections, and is rugged and easy to handle without damage.

Short videos showing the installation process can be found here:

HOW TO CONVERT A STRUCTURE INTO A LOAD CELL?

https://www.strainblog.com/media/how-convert-structure-load-cell

STRAIN GAGE INSTALLATION ON A SHAFT FOR TORQUE MEASUREMENT

https://www.youtube.com/watch?v=y-dDurbXv_o&t=85s

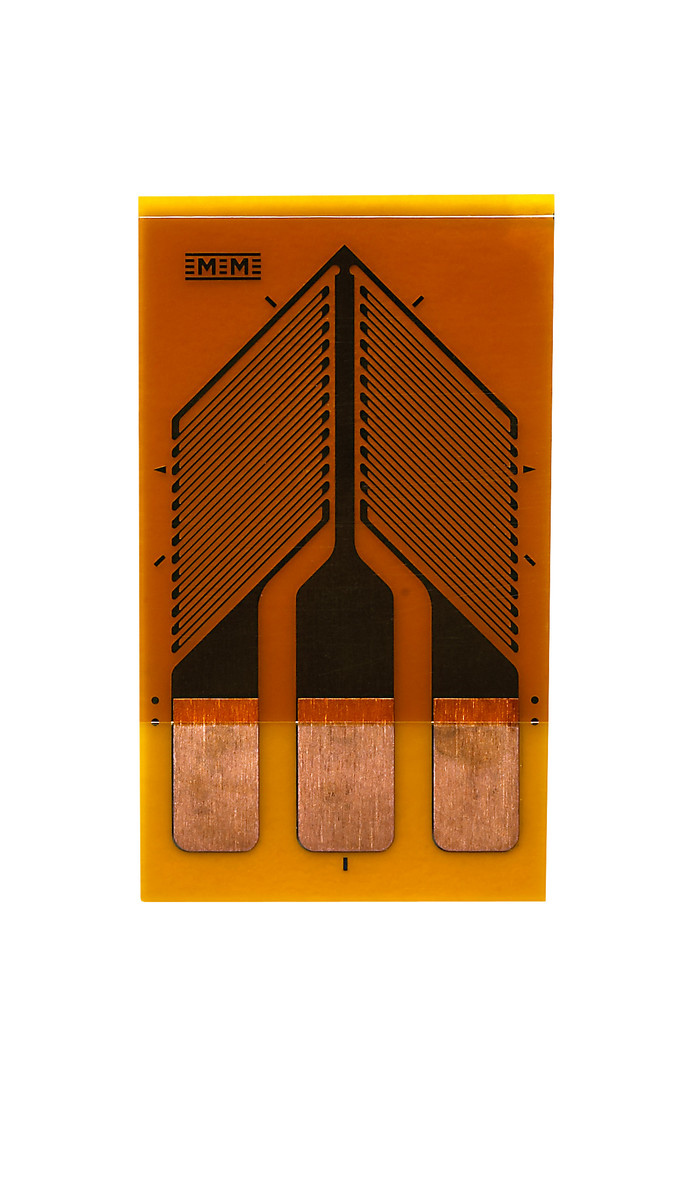

Dual-Shear (Grid) Pattern, 187UV.

This is a dual-grid, common-tab pattern, with 3 solder connections at one end of the gauge. Two of these are mounted diametrically opposite on a shaft and wired as a single full bridge. Somewhat more complicated to install, it will provide more accurate data in some situations. It’s important to know that the central common tab is for the signal output.

Other options.

We have a wide variety of full, half and quarter bridge gauges designed for torsion measurement, including high-resistance miniature full bridges and electrically independent (4-tab) dual element gauges. This allows anything from single-backing installations on very small shafts, to multi-element high accuracy measurements. 8-gauge bridges are quite common, with dual-element gauges at each 90° location around the circumference.

Installation.

Precision alignment of the gauges is critical for accurate torsion measurement. If you cannot get the shaft to a marking table or dividing head then placing a “V” block will automatically enable a perfect axial alignment mark to be made. To get diametrically-opposite locations use a strip of paper, wrap it tightly around the shaft and mark off the overlap. Now remove it, fold it exactly in half to produce a clear crease, and rewrap it onto the shaft. For the 90° positions, fold it in half twice!

Adhesive choice can be a function of the installation environment and desired accuracy and longevity. M-Bond-200 is great for short-term, M-Bond-AE10 for a room-temperature long term installation, or M-Bond-610 for ultimate performance and long life (but must be heat-cured).

An appropriate coating will protect the installation from all manner of environmental attack, with M-Coat-A suitable for laboratories, M-Coat-3145 for moderate protection, or M-Coat-JA for long-term, water and oil-resistant protection. Extreme environments could require additional protection built up in several layers.

Links: surface preparation, adhesives, coatings, other videos

StrainBlog Media: https://www.strainblog.com/media

YouTube: http://www.youtube.com/c/MicroMeasurements

Calibration.

For large driveshafts this is generally performed by calculation with reference to the shaft diameter, modulus of the material, and gauge factor of the gauges used from the engineering datasheet.

Reference to a calibrated torsion transducer can offer an easy-to-apply torsion but will be limited by the accuracy of the transducer.

Direct calibration using dead weights on a lever arm can give more accurate results but it’s important to load the item and support it correctly. Just bolting a lever to the end of a shaft or transducer will also apply bending forces which can affect the results.

Data Capture. (There are several ways to measure the force acting on a rotating shaft.)

For fully-rotating applications the strain gauge bridge will be directly connected to a wireless transmission system such as WISER from TECAT Performance Systems, Mantracourt T24 or similar.

Tecat:

https://www.strainblog.com/media/strain-gages-action-tecat

https://www.strainblog.com/media/strain-gages-action-tecat%E2%80%99s-wiser-system

Mantracourt:

https://www.strainblog.com/content/teamwork-and-winning-races

https://www.strainblog.com/content/buying-new-mountain-bike

https://www.strainblog.com/media/measuring-shock-road-hard-terrain-cycling

Strain Gage Installation Checklist on a Shaft: (only six simple steps)

How to install a strain gage sensor on a shaft? Remember that now, with a strain gage sensor bonded to the shaft, our shaft becomes the transducer.

Step 1 - Prepare shaft surface:

Remove paint and other coatings; degrease as necessary.
Dry abrade with 220 for steel 320 grit for aluminum, silicon-carbide abrasive paper.
Wet abrade with 320 for steel or 400 grit silicon-carbide abrasive paper and M-Prep Conditioner.
Scrub with a cotton tipped applicator (CSP-1) and M-Prep Conditioner A.
Using a clean dry gauze sponge (GSP-1), dry the surface with a single wiping motion.
Scrub with a cotton tipped applicator and M-Prep Neutralizer 5a
Using a clean dry gauze sponge, dry the surface with a single wiping motion.

Step 2 - Mark shaft surface for strain gage orientation and alignment.

The strain gage should be installed inline or 90° to the long axis of the shaft. For a straight reference line square to the long axis, wrap a piece of paper around the shaft, align the edges and then mark or etch the straight reference line onto the shaft.
For a line along the long axis clamp the shaft to a flat surface then slid a square down the length of the shaft. If a pair of shear gages are to be installed do this to both sides making two lines 180° apart from one another.

Step 3 - Prepare strain gage for mounting.

Part # CEA-06-250US-350 is a common torque-pattern strain gage.
Chemically clean a glass plate or similar smooth surface.
Remove strain gage from package. Lay it out on the clean glass plate shiny side up.
Apply PCT-3M gage handling tape to top side of gage. For the 250US two pieces of tape will be required to overlap as it is wider than a single width of the PCT-3M tape.
Lift the tape/gage at a shallow angle to prevent gage damage. Use the tape as a handle to safely place the gage

Step 4 - Position strain gage before bonding:

Tape gage in place on the shaft using the previously made alignment marks on shaft and the alignment marks on gage properly place the gage.
Lift one end of tape at a shallow angle until the gage is free from the but the tape still holds the gage alignment, then “hinge” back the tape to expose bonding surface of the gage.
Hit the brush on the inside of the Catalyst C bottle 8 to 10 times to minimize the amount left in the brush. Then using the side of the brush as a squeegee put a thin layer of the Catalyst C and allow to air dry for 1 minute.

Step 5 - Bond the strain gage to surface:

With the gage/tape still hinged back, apply drop of M-Bond 200 Adhesive where the tape meets the shaft surface. (M-Bond 200 is a special Cyanoacrylate which has been pretested and certified for use in bonding strain gages – manufactured by Micro-Measurements.)
Using a dry gauze sponge folded into quarters and a single wiping motion push the gage back into its aligned position.
Apply thumb (or heel of hand if gage is large like the 250US) pressure for one minute, followed by a minimum two-minute wait before removing the PCT-3M tape. Bond strength increases rapidly during first five minutes.

Step 6 - Attach lead wires and protect strain gage:

Carefully peel back PCT-3M tape 180° back on itself remove it from the strain gage.
Tin with solder the solder pads of the strain gage plus the lead wires. Attach lead wires to solder pads.
Clean in and around the solder joints with the RSK rosin solvent brush applicator. Saturate with rosin solvent and blot dry with a clean gauze sponge. Repeat at least 3 times
For environmental protection under laboratory conditions – Apply M-Coat A polyurethane coating over the strain gage and solder joints.
If the part is to exposed to an outdoor environment our M-Coat JA. The M-Coat JA is two-part polysulfide polymer compound which when fully cured, forms a hard rubber-like covering that provides an effective barrier against water and many other fluids. This tough coating also protects installations from mechanical damage.
M-Coat J (M-Coat JA): https://www.youtube.com/watch?v=mBwI4WgT70I&t=748s

Installation Accessories: http://www.vishaypg.com/micro-measurements/installation-accessories/
